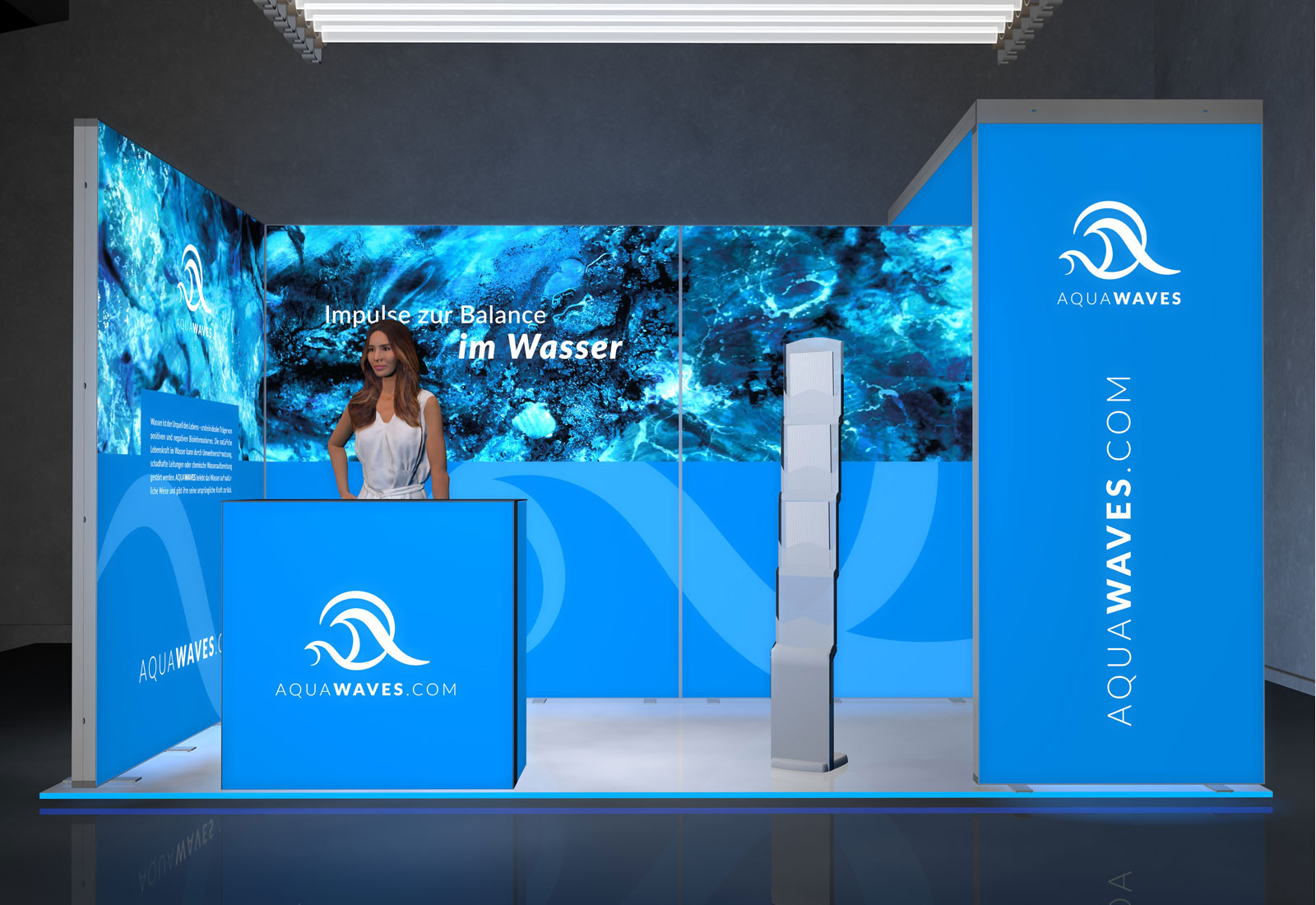

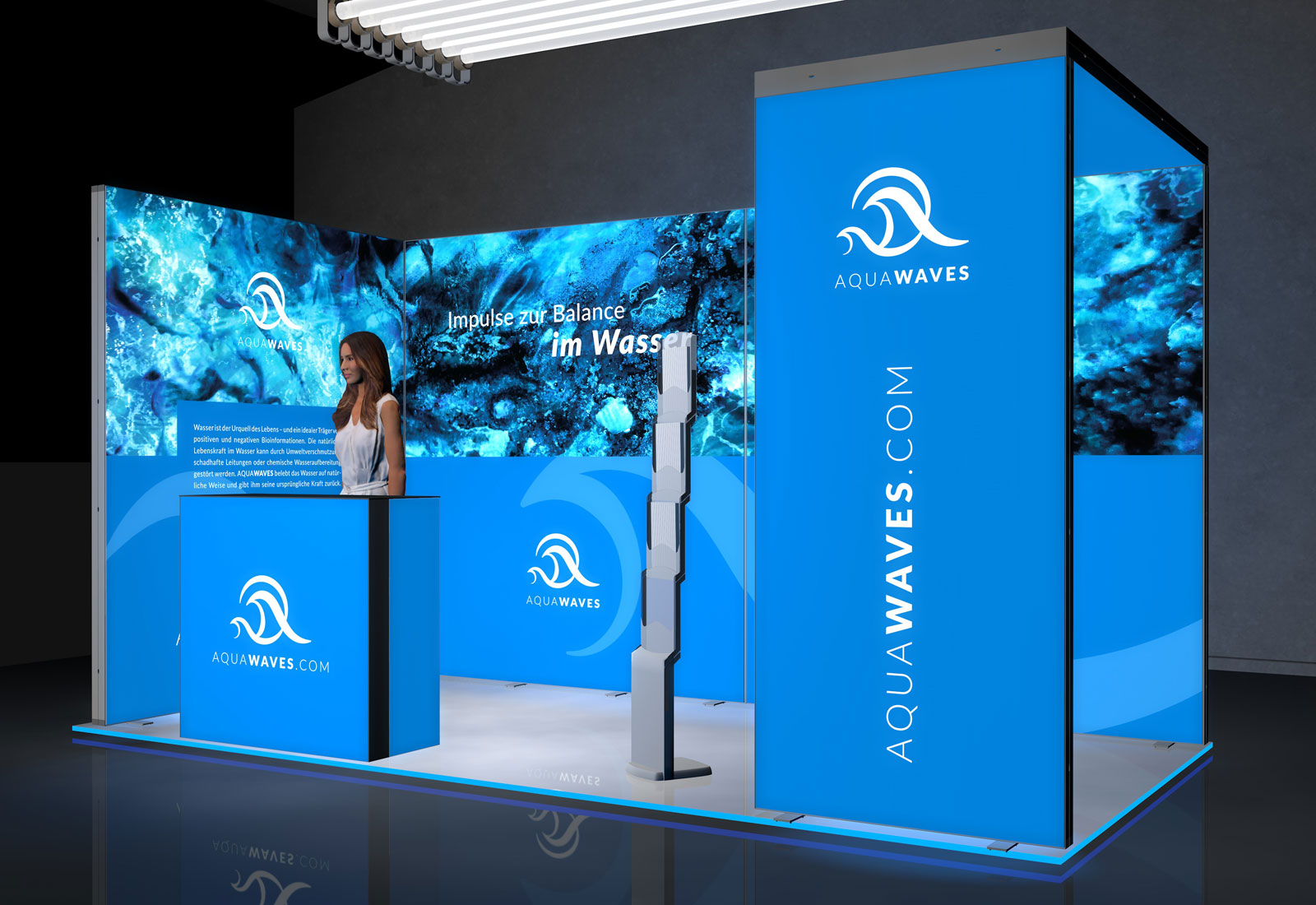

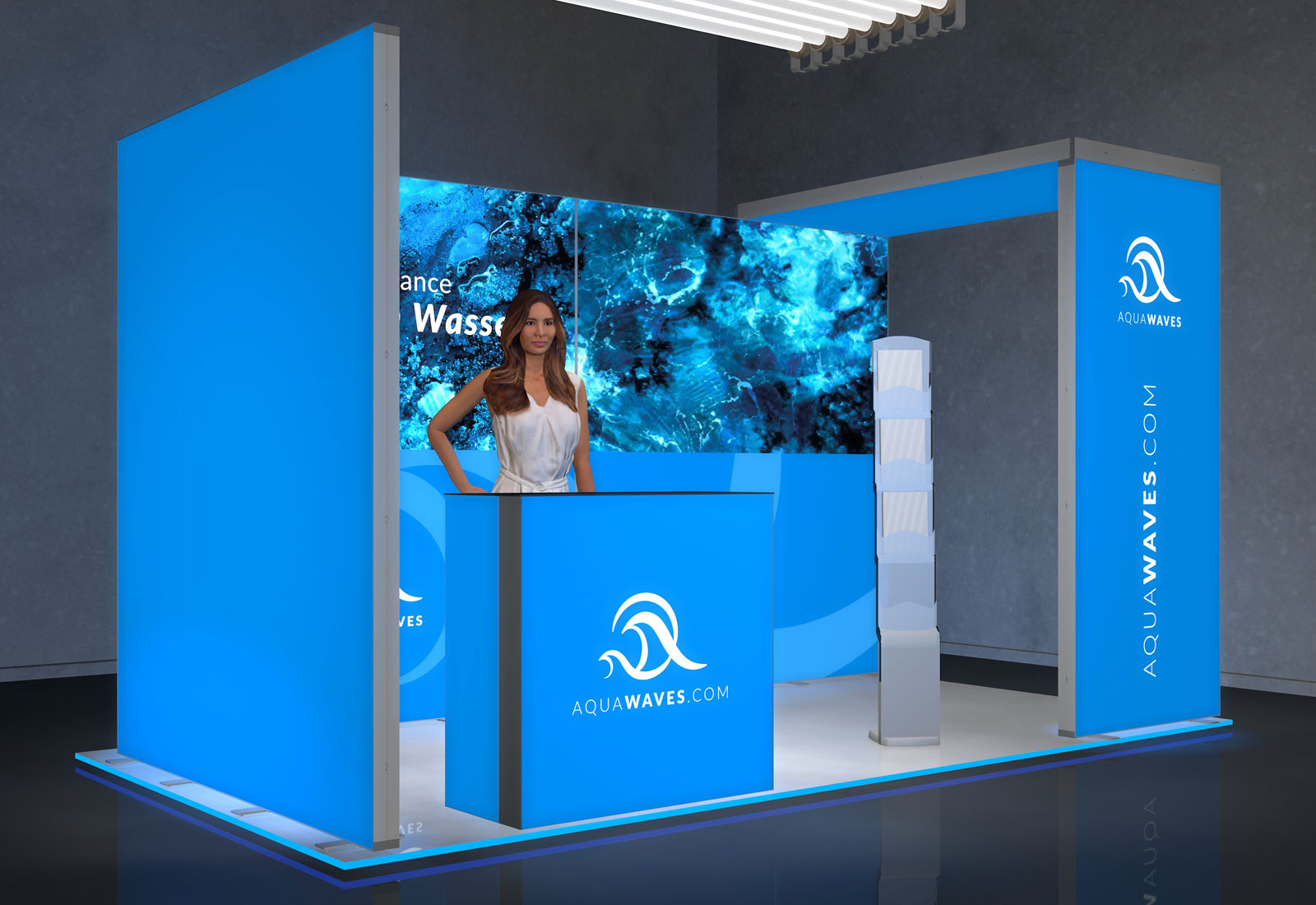

Fair Set LED 7 for 4x2 m stand area

This LED exhibition stand is designed for 4 x 2 m stand spaces. The ALU LightUp illuminated wall system is perfect for self-assembly.

LED trade fair wall

ALU LightUp is the first mobile and cost-effective LED display made of aluminium. The basic system consists of an 8 cm wide aluminium profile that is assembled without tools. The aluminium profiles contain the pre-assembled LED modules, which makes it particularly easy to assemble the illuminated display. The illuminated display is individually illuminated with textile diamond material that is simply inserted into the circumferential system groove. A particularly practical feature is that the textile prints can be changed in seconds, so that the illuminated display can always be equipped with a current advertising message.  ALU LightUp is available in widths of 85, 100 and 200 and heights of 200, 230 and 250 cm. Of course, several ALU LightUp systems can be positioned next to each other to create a luminous wall display or a luminous exhibition stand. ALU LightUp is transported in a practical transport bag that fits in any car boot.

LED counter ALU STAR PLUS:

The LED counter ALU STAR PLUS is a particularly stable light counter from the ALU STAR product family. It has a width of 100 cm and a height of 102 cm. The depth is 48 cm. ALU STAR PLUS can also be provided with a personalised imprint on the side. There is a practical shelf at the back. The counter top and the shelf are black. A lockable door set is available as an "add-on" on request. The LED counter is transported in a rollable ABS transport case (size 116x30x39 cm).

Real ZIP brochure stand

The foldable Real ZIP brochure stand consists of four DIN A4 polycarbonate pointed pockets with single sheet tilt protection. The tiered arrangement of the brochure pockets and the ergonomically shaped side struts made of silver anodised aluminium ensure perfect removal of the brochure material. The brochure stand can be folded to a small size and is delivered in a transport bag.

Technical details LED exhibition wall ALU LightUp

Light colour LED: approx. 6500 Kelvin

Illuminance:

approx. 8160 lumen with 85 cm wide ALU LightUp
approx. 9600 lumen with 100 cm wide ALU LightUp
approx. 9200 lumen with 200 cm wide ALU LightUp

Energy consumption:

2 watts per dott

68 watts for 85 cm wide ALU LightUp
80 watts for 100 cm wide ALU LightUp
160 watts for 200 cm wide ALU LightUp

Supplied external 230 volt transformer (dimensions 12.5 x 5.5 cm) with 3.3 m cable

1 x transformer (90 Watt) for 85 cm wide ALU LightUp
1 x transformer (90 Watt) for 100 cm wide ALU LightUp
2 x transformers (90 Watt) for 200 cm wide ALU LightUp
